FAG 2211-K-TVH-C3 Aligning ball bearing
Also known as : 2211-K-TVH-C3
- Inside Diameter: 55 mm
- Outside Diameter: 100 mm
- Width: 25 mm
- Basic dynamic load rating: 39 kN
- Basic static load rating: 12.4 kN
FAG 2211-K-TVH-C3

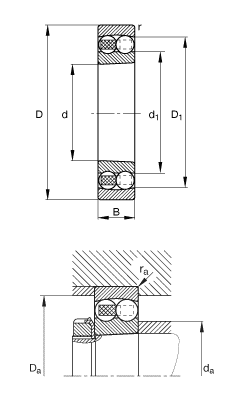

FAG 2211-K-TVH-C3 details
| d | 55 mm | |
|---|---|---|
| D | 100 mm | |
| B | 25 mm | |
| D1 | 89,8 mm | |
| Da max | 91 mm | |
| d1 | 69,6 mm | |
| da max | 68 mm | |
| da min | 64 mm | |
| ra max | 1,5 mm | |
| rmin | 1,5 mm | |
| m | 0,73 kg | Mass |
| Cr | 39000 N | Basic dynamic load rating, radial |
| C0r | 12400 N | Basic static load rating, radial |
| e | 0,22 | |
| Y1 | 2,92 | |
| Y2 | 4,52 | |
| Y0 | 3,06 | |
| nG | 7000 1/min | Limiting speed |
| nB | 6700 1/min | Reference speed |
| Cur | 770 N | Fatigue limit load, radial |
| H311 | Designation, adapter sleeve |
