SKF 2308E-2RS1TN9 Aligning ball bearing
Also known as : 2308E-2RS1TN9, 2308-2RS-TVH
- Inside Diameter: 40 mm
- Outside Diameter: 90 mm
- Width: 33 mm
- Basic dynamic load rating: 33.8 kN
- Basic static load rating: 11.2 kN
SKF 2308E-2RS1TN9

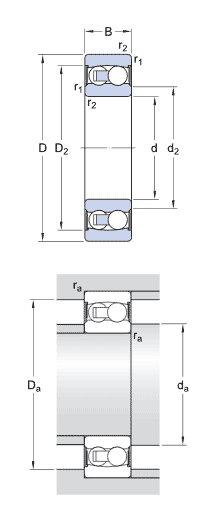

SKF 2308E-2RS1TN9 details
| model | 2308E-2RS1TN9 |
|---|---|
| d | 40 mm |
| D | 90 mm |
| B | 33 mm |
| d2 | 55.4 mm |
| D2 | 81.8 mm |
| r1,2 min. | 1.5 mm |
| da min | 49 mm |
| da max | 55 mm |
| Da max | 81 mm |
| ra max | 1.5 mm |
| C | 33.8 kN, Basic dynamic load rating |
| C0 | 11.2 kN, Basic static load rating |
| Pu | 0.57 kN, Fatigue load limit |
| Limiting speed | 5000 r/min |
| α | 1.5°, Permissible angular misalignment |
| kr | 0.05, Calculation factor |
| e | 0.23, Calculation factor |
| Y0 | 2.8, Calculation factor |
| Y1 | 2.7, Calculation factor |
| Y2 | 4.2, Calculation factor |
| Mass | 0.96 kg |
