NSK FR4 Miniature bearing
Also known as : FR4BZZ
- Inside Diameter: 6.35 mm
- Outside Diameter: 15.875 mm
- Width: 4.978 mm
- Basic dynamic load rating: 1.48 kN
- Basic static load rating: 0.615 kN
NSK FR4
NSK FR4 details

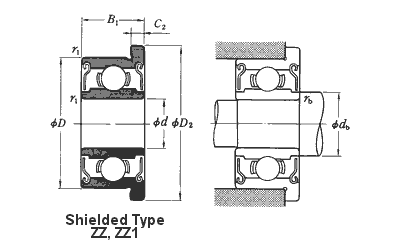

| NSK number | FR4BZZ |
|---|---|
| Type | Miniature ball bearings, Inch Design, With Flange, With Two Shielded |
| d | 6.35 mm |
| D | 15.875 mm |
| D2 | 17.526 mm |
| B1 | 4.978 mm |
| C2 | 1.067 mm |
| r1 min. | 0.3 mm |
| Cr | 1480 N |
| C0r | 615 N |
| Limiting speeds | 38000 min-1 (Grease) |
| db | 8.4 mm |
| rb | 0.3 mm |
| Mass | 4.78 g (approx.) |
NSK FR4 bearing cross reference
FR1810
6.35 mmx 15.875 mmx 4.978 mm
FR4
6.35 mmx 15.875 mmx 4.978 mm
FR188
6.35 mmx 15.875 mmx 4.978 mm
FR168
6.35 mmx 15.875 mmx 4.978 mm
FR3
6.35 mmx 15.875 mmx 4.978 mm
FR166
6.35 mmx 15.875 mmx 4.978 mm
FR156
6.35 mmx 15.875 mmx 4.978 mm
FR155
6.35 mmx 15.875 mmx 4.978 mm
FR4
6.35 mmx 15.875 mmx 4.978 mm
FR3ZZ
6.35 mmx 15.875 mmx 4.978 mm
FR155ZZS
6.35 mmx 15.875 mmx 4.978 mm
