NSK 686AVV

NSK 686AVV Miniature bearing

Also known as : 686AVV

Inside Diameter: 6 mm
Outside Diameter: 13 mm
Width: 5 mm
Basic dynamic load rating: 1.08 kN
Basic static load rating: 0.44 kN

NSK 686AVV

NSK 686AVV details

NSK number	686AVV

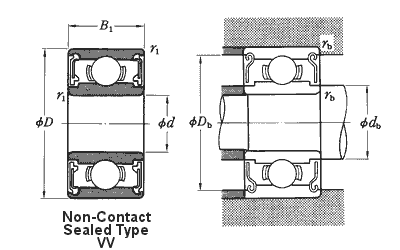

Type	Miniature ball bearings, Metric design, With Two Non-Contact Sealed
d	6 mm
D	13 mm
B1	5 mm
r_{1 min.}	0.15 mm
C_r	1080 N
C_0r	440 N
Limiting speeds	40000 min^-1 (Grease)
d_b	7.4 mm
D_b	11.7 mm
r_b	0.15 mm
Mass	2.69 g (approx.)

NSK 686AVV bearing cross reference

FR1810
6 mmx 13 mmx 5 mm

FR4
6 mmx 13 mmx 5 mm

FR188
6 mmx 13 mmx 5 mm

FR168
6 mmx 13 mmx 5 mm

FR3
6 mmx 13 mmx 5 mm

FR166
6 mmx 13 mmx 5 mm

FR156
6 mmx 13 mmx 5 mm

FR155
6 mmx 13 mmx 5 mm

FR4
6 mmx 13 mmx 5 mm

FR3ZZ
6 mmx 13 mmx 5 mm

FR155ZZS
6 mmx 13 mmx 5 mm

FR2-6ZZS
6 mmx 13 mmx 5 mm
