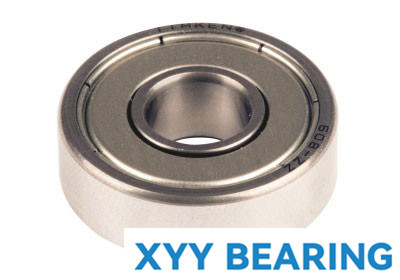

TIMKEN 618/3-ZZ Miniature bearing
Also known as : 618/3-ZZ
- Inside Diameter: 3 mm
- Outside Diameter: 7 mm
- Width: 2 mm
- Basic dynamic load rating: 0.31 kN
- Basic static load rating: 0.11 kN
TIMKEN 618/3-ZZ
TIMKEN 618/3-ZZ details
| Bearing Number | 618/3-ZZ |
|---|---|
| Brand | TIMKEN |
| Type | Miniature ball bearings |
| Bore Size d | 3.000 mm |
| Features | Shields |
| Weight | 0.0003 Kg |
| Outside Diameter D | 7.000 mm |
| Outside Ring Width B | 2.000 mm |
| Radius Rs min | 0.100 mm |
| Cr - Dynamic Load Rating | 0.31 kN |
| C0r - Static Load Rating | 0.11 kN |
| Grease Limiting Speed | 74000 rpm |
| Oil Limiting Speed | 88000 rpm |
