NTN 4131/500 Tapered roller bearing
Also known as : 4131/500
- Inside Diameter: 500 mm
- Outside Diameter: 830 mm
- Width: 264 mm
- Basic dynamic load rating: 5200 kN
- Basic static load rating: 10500 kN
NTN 4131/500
NTN 4131/500 details
| Boundary dimensions (mm) | Basic load ratings (kN) |
Basic load ratings (kgf) |
Limiting speed (min-1) |
Mass (kg) <approx.> |
||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Inner dia. (d) | Outer dia. (D) | Width (B) | Chamfer (rs_min) | Dynamic (Cr) | Static (Cor) | Dynamic (Cr) | Static (Cor) | Grease | Oil | |
| 500 | 830 | 264 | 7.5 | 5200 | 10500 | 530000 | 1070000 | 290 | 390 | 528 |

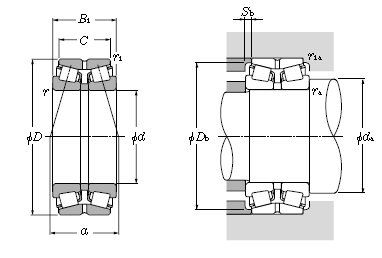

| Abutment and fillet dimensions (mm) |
||||||||
|---|---|---|---|---|---|---|---|---|
| da min |
da max |
Da min |
Da max |
Dx <approx.> |
Cy max |
Cz min |
ras max |
rnas max |
| 536 | 6 | |||||||
Xinyouya have NTN 4131/500 bearings in stock. As the inner clearance of NTN double row tapered roller bearings (Outward facing type) is adjusted to a set value, the bearings must be used in combination with components of the same product number, as marked.
