FAG 32034-X-XL-DF-A230-270 Tapered roller bearing
Also known as : 32034-X-XL-DF-A230-270,
- Inside Diameter: 170 mm
- Outside Diameter: 260 mm
- Width: 114 mm
- Basic dynamic load rating: 1020 kN
- Basic static load rating: 1770 kN
FAG 32034-X-XL-DF-A230-270

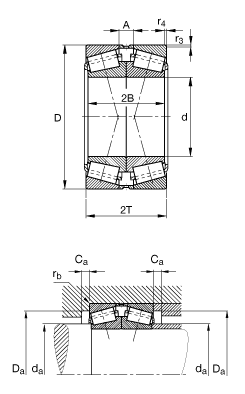

FAG 32034-X-XL-DF-A230-270 details
| model | 32034-X-XL-DF-A230-270 |
|---|---|
| d | 170 mm |
| D | 260 mm |
| 2T | 114 mm |
| 2B | 114 mm |
| A | 28 mm |
| Ca min | 10 mm |
| Da max | 248 mm |
| Da min | 230 mm |
| da max | 187 mm |
| r3,4 min | 2.5 mm |
| rb max | 2.5 mm |
| Cr | 1020000 N, Basic dynamic load rating, radial |
| C0r | 1770000 N, Basic static load rating, radial |
| Limiting speed | 2500 1/min |
| Reference speed | 1390 1/min |
| Cur | 239000 N, Fatigue limit load, radial |
| e | 0.44 |
| Y0 | 1.49 |
| Y1 | 1.52 |
| Y2 | 2.26 |
| mass | 21.7 kg |
