FAG 33219 Tapered roller bearing
Also known as : 33219, T3FE095,
- Inside Diameter: 95 mm
- Outside Diameter: 170 mm
- Width: 58 mm
- Basic dynamic load rating: 375 kN
- Basic static load rating: 560 kN
FAG 33219

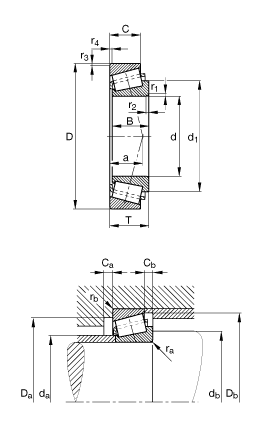

FAG 33219 details
| model | 33219 |
|---|---|
| Comparative designation to DIN ISO 355 | T3FE095 |
| d | 95 mm |
| D | 170 mm |
| T | 58 mm |
| a | 43 mm |
| B | 58 mm |
| C | 44 mm |
| Ca min | 9 mm |
| Cb min | 14 mm |
| Da max | 158 mm |
| Da min | 144 mm |
| Db min | 163 mm |
| d1 | 132 mm |
| da max | 107 mm |
| db min | 107 mm |
| r1,2 min | 3 mm |
| r3,4 min | 2.5 mm |
| ra max | 3 mm |
| rb max | 2.5 mm |
| Cr | 375000 N, Basic dynamic load rating, radial |
| C0r | 560000 N, Basic static load rating, radial |
| Limiting speed | 3950 1/min |
| Reference speed | 2850 1/min |
| Cur | 66000 N, Fatigue limit load, radial |
| e | 0.41 |
| Y | 1.47 |
| Y0 | 0.81 |
| mass | 5.55 kg |
FAG 33219 bearing cross reference
68450R/68709R
95 mmx 170 mmx 58 mm
H414245/H414210
95 mmx 170 mmx 58 mm
387/382A
95 mmx 170 mmx 58 mm
HM88630R/HM88610R
95 mmx 170 mmx 58 mm
02473R/02420R
95 mmx 170 mmx 58 mm
23100R/23256R
95 mmx 170 mmx 58 mm
387-384ED
95 mmx 170 mmx 58 mm
389-384DRB
95 mmx 170 mmx 58 mm
EE132083-132126D
95 mmx 170 mmx 58 mm
42362D - 42586
95 mmx 170 mmx 58 mm
L357049-L357019-B
95 mmx 170 mmx 58 mm
