NSK HR30204J Tapered roller bearing
Also known as : HR30204J, 30204
- Inside Diameter: 20 mm
- Outside Diameter: 47 mm
- Width: 15.25 mm
- Basic dynamic load rating: 27.9 kN
- Basic static load rating: 28.5 kN
NSK HR30204J

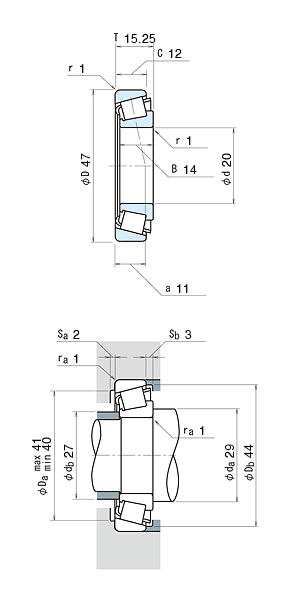

NSK HR30204J details
| model | HR30204J |
|---|---|
| d | 20 mm |
| D | 47 mm |
| T | 15.25 mm |
| B | 14 mm |
| C | 12 mm |
| Cone rmin. | 1 mm |
| Cup rmin. | 1 mm |
| Cr | 27900 N |
| C0r | 28500 N |
| Limiting speeds | 8000 min-1 (Grease) |
| Limiting speeds | 11000 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
2DB |
| e | 0.35 (constant) |
| y1 | 1.7 (Axial Load Factors) |
| y0 | 0.96 (Axial Load Factors) |
| Mass | 0.127 kg (approx.) |
NSK HR30204J bearing cross reference
68450R/68709R
20 mmx 47 mmx 15.25 mm
H414245/H414210
20 mmx 47 mmx 15.25 mm
387/382A
20 mmx 47 mmx 15.25 mm
HM88630R/HM88610R
20 mmx 47 mmx 15.25 mm
02473R/02420R
20 mmx 47 mmx 15.25 mm
23100R/23256R
20 mmx 47 mmx 15.25 mm
387-384ED
20 mmx 47 mmx 15.25 mm
389-384DRB
20 mmx 47 mmx 15.25 mm
EE132083-132126D
20 mmx 47 mmx 15.25 mm
42362D - 42586
20 mmx 47 mmx 15.25 mm
L357049-L357019-B
20 mmx 47 mmx 15.25 mm
