NSK HR30214J Tapered roller bearing
Also known as : HR30214J, 30214
- Inside Diameter: 70 mm
- Outside Diameter: 125 mm
- Width: 26.25 mm
- Basic dynamic load rating: 132 kN
- Basic static load rating: 163 kN
NSK HR30214J

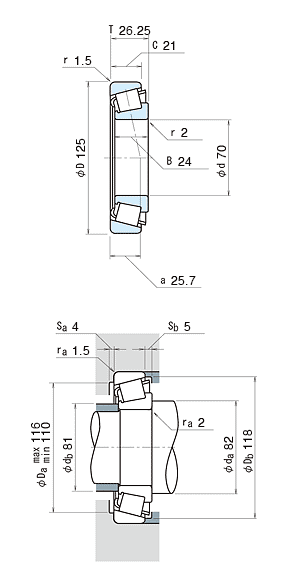

NSK HR30214J details
| model | HR30214J |
|---|---|
| d | 70 mm |
| D | 125 mm |
| T | 26.25 mm |
| B | 24 mm |
| C | 21 mm |
| Cone rmin. | 2 mm |
| Cup rmin. | 1.5 mm |
| Cr | 132000 N |
| C0r | 163000 N |
| Limiting speeds | 2800 min-1 (Grease) |
| Limiting speeds | 4000 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
3EB |
| e | 0.42 (constant) |
| y1 | 1.4 (Axial Load Factors) |
| y0 | 0.79 (Axial Load Factors) |
| Mass | 1.3 kg (approx.) |
NSK HR30214J bearing cross reference
68450R/68709R
70 mmx 125 mmx 26.25 mm
H414245/H414210
70 mmx 125 mmx 26.25 mm
387/382A
70 mmx 125 mmx 26.25 mm
HM88630R/HM88610R
70 mmx 125 mmx 26.25 mm
02473R/02420R
70 mmx 125 mmx 26.25 mm
23100R/23256R
70 mmx 125 mmx 26.25 mm
387-384ED
70 mmx 125 mmx 26.25 mm
389-384DRB
70 mmx 125 mmx 26.25 mm
EE132083-132126D
70 mmx 125 mmx 26.25 mm
42362D - 42586
70 mmx 125 mmx 26.25 mm
L357049-L357019-B
70 mmx 125 mmx 26.25 mm
