NSK HR31319J Tapered roller bearing
Also known as : HR31319J, 31319
- Inside Diameter: 95 mm
- Outside Diameter: 200 mm
- Width: 49.5 mm
- Basic dynamic load rating: 310 kN
- Basic static load rating: 375 kN
NSK HR31319J

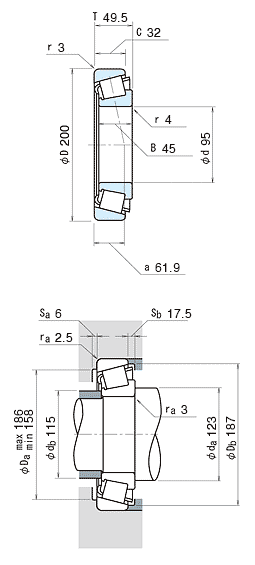

NSK HR31319J details
| model | HR31319J |
|---|---|
| d | 95 mm |
| D | 200 mm |
| T | 49.5 mm |
| B | 45 mm |
| C | 32 mm |
| Cone rmin. | 4 mm |
| Cup rmin. | 3 mm |
| Cr |
310000 N 31500 kgf |
| C0r |
375000 N 38500 kgf |
| Limiting speeds |
1700 min-1 (Grease) |
| Limiting speeds |
2400 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
7GB |
| e | 0.83 (constant) |
| y1 | 0.73 (Axial Load Factors) |
| y0 | 0.4 (Axial Load Factors) |
| Mass | 6.64 kg (approx.) |
NSK HR31319J bearing cross reference
68450R/68709R
95 mmx 200 mmx 49.5 mm
H414245/H414210
95 mmx 200 mmx 49.5 mm
387/382A
95 mmx 200 mmx 49.5 mm
HM88630R/HM88610R
95 mmx 200 mmx 49.5 mm
02473R/02420R
95 mmx 200 mmx 49.5 mm
23100R/23256R
95 mmx 200 mmx 49.5 mm
387-384ED
95 mmx 200 mmx 49.5 mm
389-384DRB
95 mmx 200 mmx 49.5 mm
EE132083-132126D
95 mmx 200 mmx 49.5 mm
42362D - 42586
95 mmx 200 mmx 49.5 mm
L357049-L357019-B
95 mmx 200 mmx 49.5 mm
