NSK HR32318J Tapered roller bearing
Also known as : HR32318J, 32318
- Inside Diameter: 90 mm
- Outside Diameter: 190 mm
- Width: 67.5 mm
- Basic dynamic load rating: 450 kN
- Basic static load rating: 590 kN
NSK HR32318J

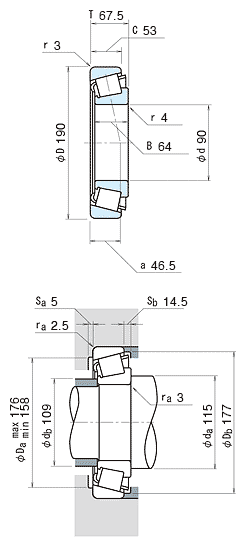

NSK HR32318J details
| model | HR32318J |
|---|---|
| d | 90 mm |
| D | 190 mm |
| T | 67.5 mm |
| B | 64 mm |
| C | 53 mm |
| Cone rmin. | 4 mm |
| Cup rmin. | 3 mm |
| Cr |
450000 N 46000 kgf |
| C0r |
590000 N 60500 kgf |
| Limiting speeds |
2000 min-1 (Grease) |
| Limiting speeds |
2600 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
2GD |
| e | 0.35 (constant) |
| y1 | 1.7 (Axial Load Factors) |
| y0 | 0.96 (Axial Load Factors) |
| Mass | 8.6 kg (approx.) |
NSK HR32318J bearing cross reference
68450R/68709R
90 mmx 190 mmx 67.5 mm
H414245/H414210
90 mmx 190 mmx 67.5 mm
387/382A
90 mmx 190 mmx 67.5 mm
HM88630R/HM88610R
90 mmx 190 mmx 67.5 mm
02473R/02420R
90 mmx 190 mmx 67.5 mm
23100R/23256R
90 mmx 190 mmx 67.5 mm
387-384ED
90 mmx 190 mmx 67.5 mm
389-384DRB
90 mmx 190 mmx 67.5 mm
EE132083-132126D
90 mmx 190 mmx 67.5 mm
42362D - 42586
90 mmx 190 mmx 67.5 mm
L357049-L357019-B
90 mmx 190 mmx 67.5 mm
