NSK HR33111J Tapered roller bearing
Also known as : HR33111J, 33111
- Inside Diameter: 55 mm
- Outside Diameter: 95 mm
- Width: 30 mm
- Basic dynamic load rating: 112 kN
- Basic static load rating: 158 kN
NSK HR33111J

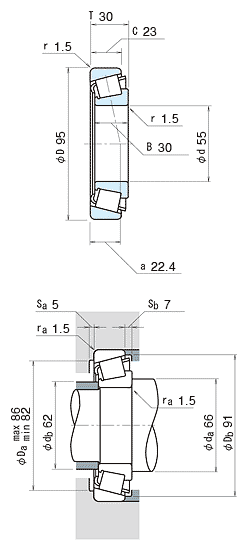

NSK HR33111J details
| model | HR33111J |
|---|---|
| d | 55 mm |
| D | 95 mm |
| T | 30 mm |
| B | 30 mm |
| C | 23 mm |
| Cone rmin. | 1.5 mm |
| Cup rmin. | 1.5 mm |
| Cr |
112000 N 11500 kgf |
| C0r |
158000 N 16100 kgf |
| Limiting speeds |
3800 min-1 (Grease) |
| Limiting speeds |
5000 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
3CE |
| e | 0.37 (constant) |
| y1 | 1.6 (Axial Load Factors) |
| y0 | 0.88 (Axial Load Factors) |
| Mass | 0.877 kg (approx.) |
NSK HR33111J bearing cross reference
68450R/68709R
55 mmx 95 mmx 30 mm
H414245/H414210
55 mmx 95 mmx 30 mm
387/382A
55 mmx 95 mmx 30 mm
HM88630R/HM88610R
55 mmx 95 mmx 30 mm
02473R/02420R
55 mmx 95 mmx 30 mm
23100R/23256R
55 mmx 95 mmx 30 mm
387-384ED
55 mmx 95 mmx 30 mm
389-384DRB
55 mmx 95 mmx 30 mm
EE132083-132126D
55 mmx 95 mmx 30 mm
42362D - 42586
55 mmx 95 mmx 30 mm
L357049-L357019-B
55 mmx 95 mmx 30 mm
