IKO CF3BR cam follower bearings
Also known as : CF3BR, KR10
- Inside Diameter: 3 mm
- Outside Diameter: 10 mm
- Width:
- Basic dynamic load rating: 1500 kN
- Basic static load rating: 1020 kN
IKO CF3BR

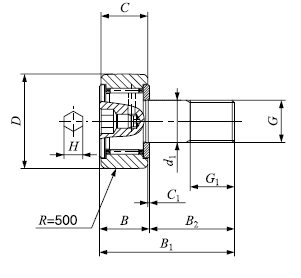

IKO CF3BR details
| model | CF3BR |
|---|---|
| D | 10 mm |
| C | 7 mm |
| d1 | 3 mm |
| G | M 3x0.5 |
| G1 | 5 mm |
| B | 8 mm |
| B1 | 17 mm |
| B2 | 9 mm |
| B3 | -- mm |
| C1 | 0.5 mm |
| g1 | -- mm |
| g2 | -- mm |
| H | 2 mm |
| rs min | 0.2 mm |
| fmin | 6.8 mm, Mounting dimension |
| Maximum tightening torque | 0.34 N.m |
| C | 1500 N, Basic dynamic load rating |
| C0 | 1020 N, Basic static load rating |
| Maximum allowable load | 384 N |
| Mass | 4.3 g (approx.) |
