IKO CF18FBUUR cam follower bearings
Also known as : CF18FBUUR, KR40
- Inside Diameter: 18 mm
- Outside Diameter: 40 mm
- Width:
- Basic dynamic load rating: 11.8 kN
- Basic static load rating: 20.2 kN
IKO CF18FBUUR

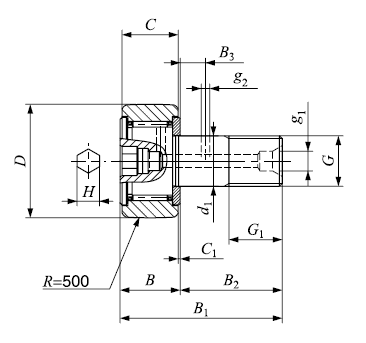

IKO CF18FBUUR details
| model | CF18FBUUR Crowned outer ring |
|---|---|
| D | 40 mm |
| C | 20 mm |
| d1 | 18 mm |
| G | M18x1.5 |
| G1 | 19 mm |
| B | 21.6max mm |
| B1 | 58.1max mm |
| B2 | 36.5 mm |
| B3 | 8 mm |
| C1 | 0.8 mm |
| g1 | 6 mm |
| g2 | 3 mm |
| H | 8 mm |
| rs min | - mm |
| fmin | 29 mm, Mounting dimension |
| Maximum tightening torque | 86.2 N.m |
| C | 11800 N, Basic dynamic load rating |
| C0 | 20200 N, Basic static load rating |
| Maximum allowable load | 20200 N |
| Mass | 250 g (approx.) |
