SKF KRV40PPA cam follower cam follower bearings
Also known as : KRV40PPA
- Inside Diameter:
- Outside Diameter: 40 mm
- Width: 58 mm
- Basic dynamic load rating: 14.2 kN
- Basic static load rating: 26.5 kN
SKF KRV40PPA cam follower
SKF KRV40PPA cam follower details
| Number | KRV 40 PPA |
|---|---|
| Type | SKF cam follower with an axial sliding ring on both sides, full complement needle roller set |

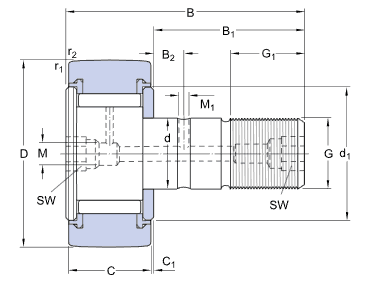

| Dimensions | |
| D | 40 mm |
| d | 18 mm |
| B | 58 mm |
| C | 20 mm |
| B1 | 36.5 mm |
| B2 | 8 mm |
| C1 | 0.8 mm |
| d1 | 31.5 mm |
| G | M 18x1.5 |
| G1 | 19 mm |
| M | 6 mm |
| M1 | 3 mm |
| SW | 8 mm |
| r1,2 min | 1 mm |
| Calculation data | |
| Basic dynamic load rating, C | 14.2 KN |
| Basic static load rating, C0 | 26.5 KN |
| Fatigue load limit, Pu | 3.1 KN |
| Maximum dynamic radial loads, Fr max. | 17 KN |
| Maximum static radial loads, F0r max. | 24.5 KN |
| Limiting speed | 2200 r/min |
| Mounting information | |
| Recommended tighthening torque | 87 N.M |
| Included products | |
| Grease fitting | NIP A2x7.5 |
| Hexagonal nut | M 18x1.5 |
| Mass | |
| Mass cam follower | 0.25 kg |
