SKF NUKR62A cam follower cam follower bearings
Also known as : NUKR62A
- Inside Diameter:
- Outside Diameter: 62 mm
- Width: 80 mm
- Basic dynamic load rating: 41.3 kN
- Basic static load rating: 48 kN
SKF NUKR62A cam follower
SKF NUKR62A cam follower details
| Number | NUKR 62 A |
|---|---|
| Type | SKF Cam follower based on a double row full complement cylindrical roller bearing with two integral outer ring flanges |

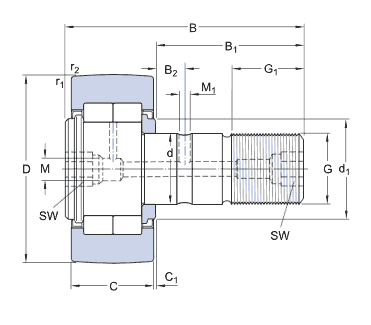

| Dimensions | |
| D | 62 mm |
| d | 24 mm |
| B | 80 mm |
| C | 28 mm |
| B1 | 49.5 mm |
| B2 | 11 mm |
| C1 | 1.3 mm |
| d1 | 38 mm |
| G | M 24x1.5 |
| G1 | 25 mm |
| M | 8 mm |
| M1 | 4 mm |
| SW | 14 mm |
| r1,2 min | 1 mm |
| Calculation data | |
| Basic dynamic load rating, C | 41.3 KN |
| Basic static load rating, C0 | 48 KN |
| Fatigue load limit, Pu | 5.85 KN |
| Maximum dynamic radial loads, Fr max. | 25 KN |
| Maximum static radial loads, F0r max. | 36 KN |
| Limiting speed | 2600 r/min |
| Mounting information | |
| Recommended tighthening torque | 220 N.M |
| Included products | |
| Grease fitting | NIP A3x9.5 |
| Hexagonal nut | M 24x1.5 |
| Mass | |
| Mass cam follower | 0.8 kg |
